YHR1181-A

RO hot & cold water purifier

Compressor cooling
Instant heating

Product characteristics

  • 6 Stages Filtration System
  • 5s Instant Heating
  • Cold Water
  • UV Sterilization
  • Child Lock

Product brief

Integrates the functions of purified water, instant hot water and ice water into one. Integration of functions and structures to provide higher product cost performance.



Products Features:

  • Compressor Cooling System
  • Dual water resources
  • Auto filter replacement reminder
Inquiry Now

Specifications

Temp. Options

Ambient/5-8℃/95℃

Purification Scheme

RO or Customized

Water Volume

300ml, unlimited

Ice Water Temp.

5-8℃

Original Water Tank

5L

Cold water tank

1.4L

Pure water tank

2L

Cold water flow rate

2.2L/hour

Power requirements

220V, 50Hz or customized

Input Power

220V: 2170W

110V: 1520W

RO Membrane Specifications

100 Gallons

Water Purification Flow

≥240ml/min

Purification stage

6 Stage Purification

Filter lifetime

1&2 Filter: 6-12months

RO Filter: 12-24 months

Filter Type

Pre: stainless steel filter net

2 in 1 Filter: PP+GAC Filter

2 in 1 Filter: T33+PP Filter

RO Filter: 100GPD RO Filter

Warranty

1 Year

Certification

CE, CB, RoHS, LFGB, CCC, REACH

Installation

1. Desktop used tank(No Installation)

2. Desktop tap water pipeline connection(tankless)

Product Size

500*300*450mm

Carton Size

670*450*600mm

Net Weight

18.6KG

Gross Weight

22KG

Compressor Cooling System



1. Faster Cooling
2. Cold Water Temperature below 4 Celsius
3. Low Decibel



  • 5-10

    Celsius

  • 5S

    Cold Water

5S Instant heating

Upgraded thick film heating system, instant heating, gently one click, fresh and good water arrives instantly.



Built-in UV Lamp 24h UV disinfection cycle

Through ultraviolet light, inhibit the growth of bacteria, viruses, molds and other microorganisms in water, UV sterilization, avoid secondary pollution of clean water.
Sterilization rate
99.89%

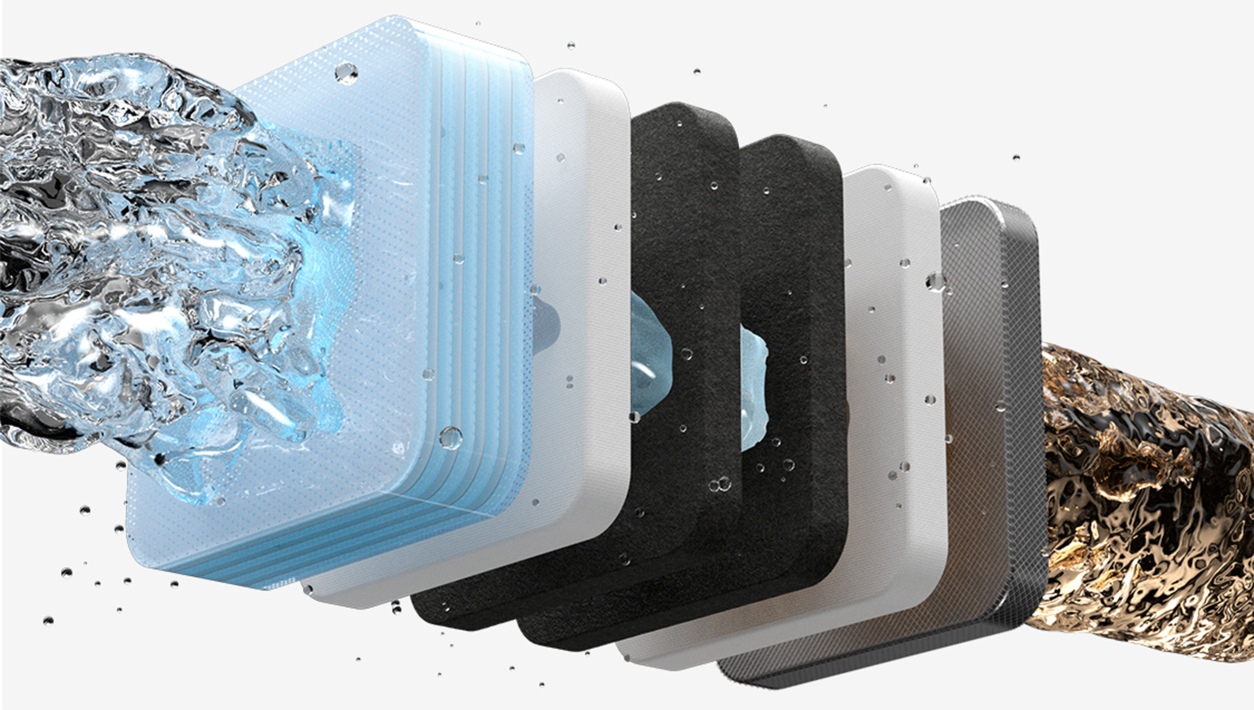

4 levels & 6 stages filtration system

  • 4th Grade US Dow RO Membrane

    Heavy metals, bacteria, viruses antibiotics, scale

  • 3rd Grade Sweden Jacobi PP+CAC

    Chlorine products

  • 2nd Grade Japanese Kuraray GAC+PP

    Impurities, residual chlorine, rust, sediment, peculiar

  • 1st Grade Metal Filter

    Small stones, sediment, etc.

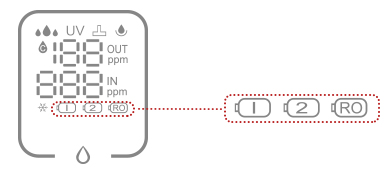

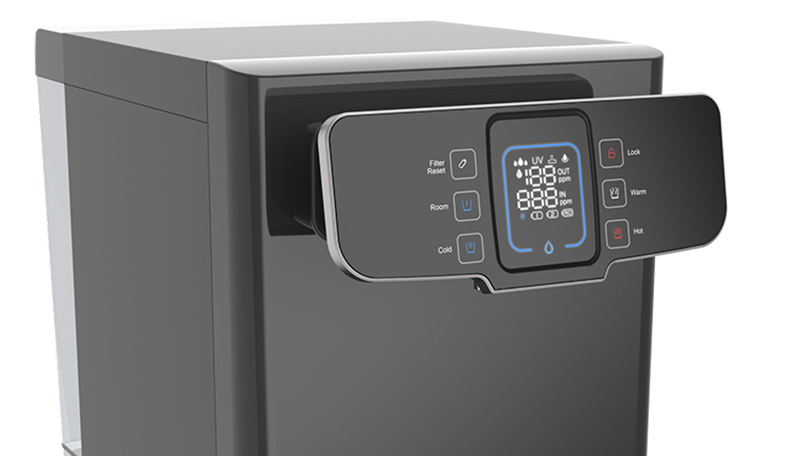

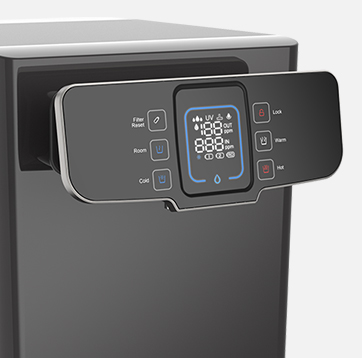

Intelligent Reminder of filter life

Real-time display of the use of each level of filter element, flashing indicator light reminds to replace the filter

The number of the filter flashes to indicate that it needs to be changed

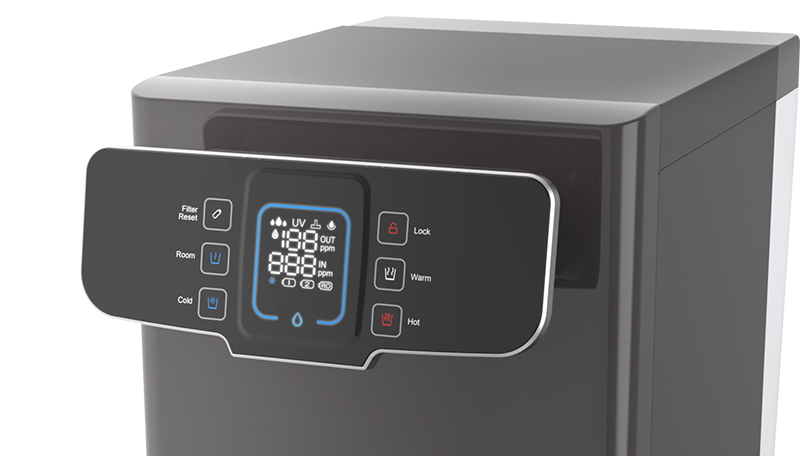

Smart TDS detection

Real-time detection of TDS value of influent and effluent visualize

Dual water source design

Water Tank Mode

Portable water tank design,can be used without installation.

Water Pipeline Mode

Directly connected to tap water pipes.
